Garelick EEz-In Sport/Diver/Bass Boat Ladder Transom Mounting

Garelick EEz-In Sport/Diver Ladder Transom Mounting.D.

Sport/Diver/Bassboat Ladder Mounting.LNS.

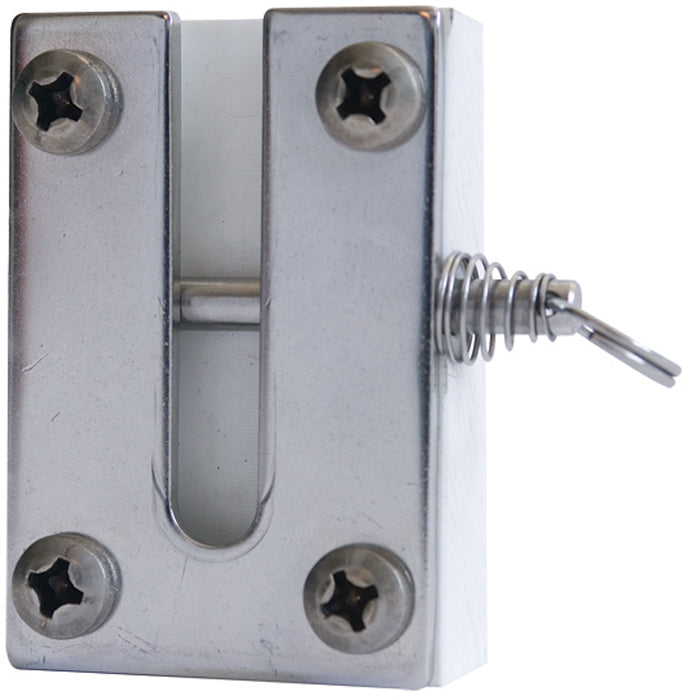

• Transom Mount Bracket:  Garelick 99180 Sport/Diver Ladder Transom Bracket    3-99180.

                  D.  99180- Included with all sport/diver series ladders. 1" thick poly spacer 10° angle with lock and stainless steel face plate. Mounting hole diameter: 5/16".

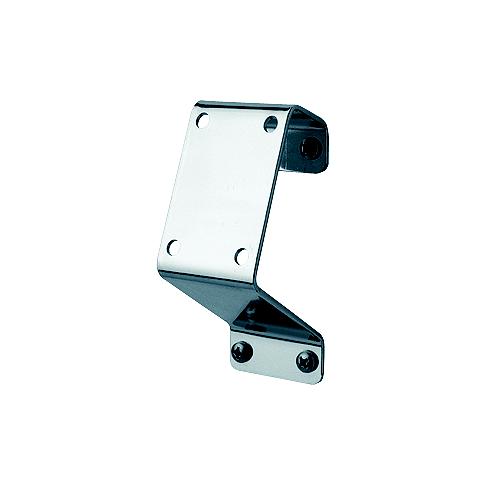

• 2" Transom Extension Bracket: Garelick 99181 Sport/Diver Ladder Transom Extension Mt., 2". 3-99181

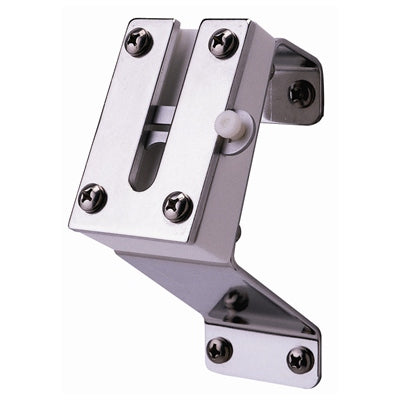

• 3" Transom Extension Bracket: Garelick 99184 Sport/Diver Ladder Transom Extension Mt., 3". 3-99184

D-99184 | EXTENSION SHIM: Stainless steel. Extends ladder 3" farther from the transom. Used with face plate and 10° poly spacer included with ladder. Dimensions: 2.75" W x 3.62” Н.

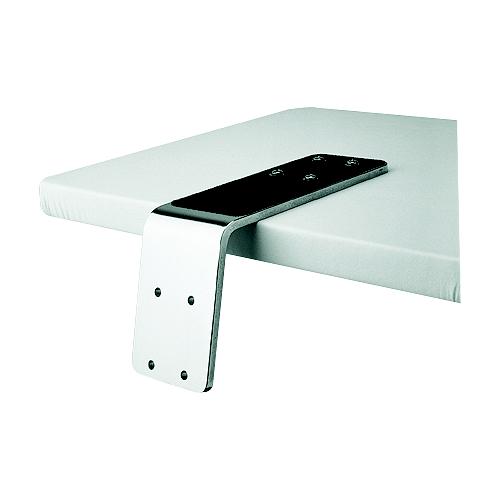

• Garelick 99187 Over Platform Mount: Over Platform Mount. 3-99187

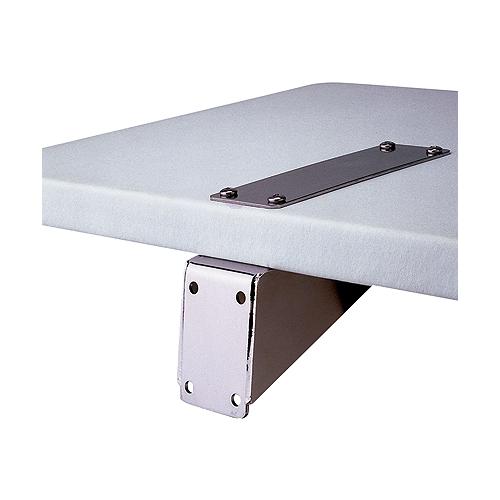

• Garelick 99182 Under Platform Mount: Under Platform Mount. 3-99182

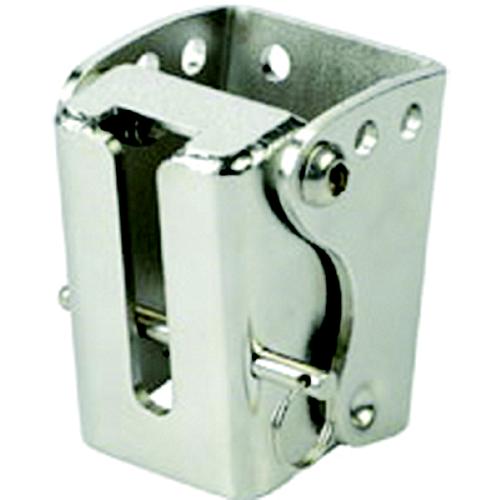

• Garelick 99188 3-1/4" SS Breakaway Hinge: Compatible with all sport/diver (Part #s 19802, 19803, 19804, 19833, 19834) and the bass boat ladder (model # 19812) mounting hardware. Made of stainless steel, the adjustable +/- 15° features a breakaway hinge allowing the ladder to ride on top of the water. 3-99188

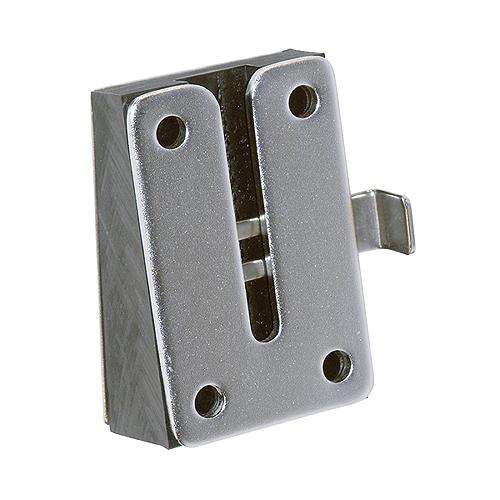

• Transom Mount BracketIncluded with DL-3X and DL-4X. Slide pin used to secure ladder when in use. 332-DLB3.
