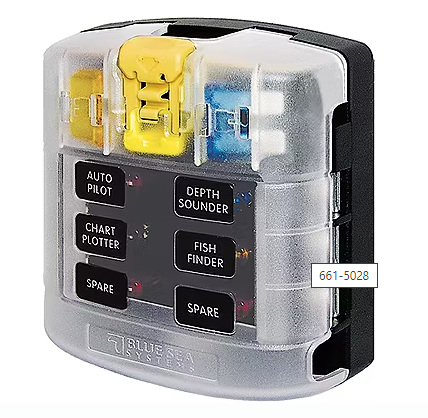

Blue Sea Systems-Blade Common Source ATO/ATC Fuse Block - 6 Circuits with Cover
Blue Sea Systems-Blade Common Source ATO/ATC Fuse Block - 6 Circuits with Cover
Precio habitual
$57.99
Precio habitual
Precio de oferta
$57.99
Precio unitario
por
Bajas existencias
No se pudo cargar la disponibilidad de retiro
Clear insulating cover with label recess for small Blue Sea Systems' labels. Cover insulates all conductive parts, satisfying ABYC/USCG requirements. Tin-plated copper buses and fuse clips give 30 Ampere rating per circuit. Rated for 32 Volts DC, 100 Ampere maximum per block. Accepts ATO and ATC fast acting blade type fuses and plug-in style circuit breakers. Thermoplastic base and polycarbonate cover.
| Attributes | ||
| Gang | 6 | |
| Fuse | ATO/ATC | |
| Neg Bus | No | |
| Size | 3.32" x 3.65" | |
| Description | Block w/Cover | |
| Amps | 100A per block/30A per circuit Max | |
| Fuse Type | ATO/ATC | |
| Mounting Holes | #8 Screw (M4) | |
| Number of Gangs | 6 | |
| Screw Size | #8-32 Screws with captive star lock washer | |
Model: 5028
